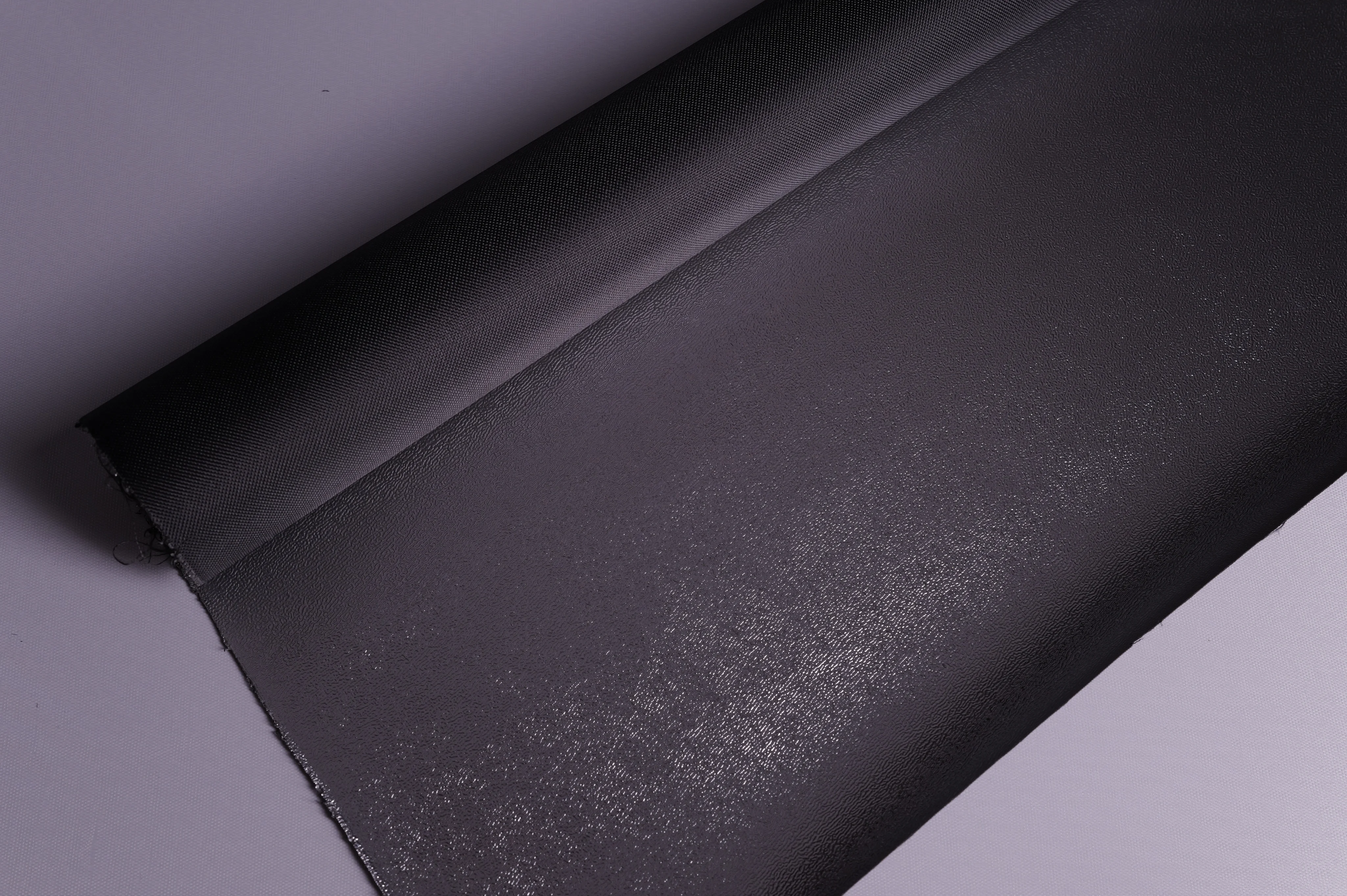

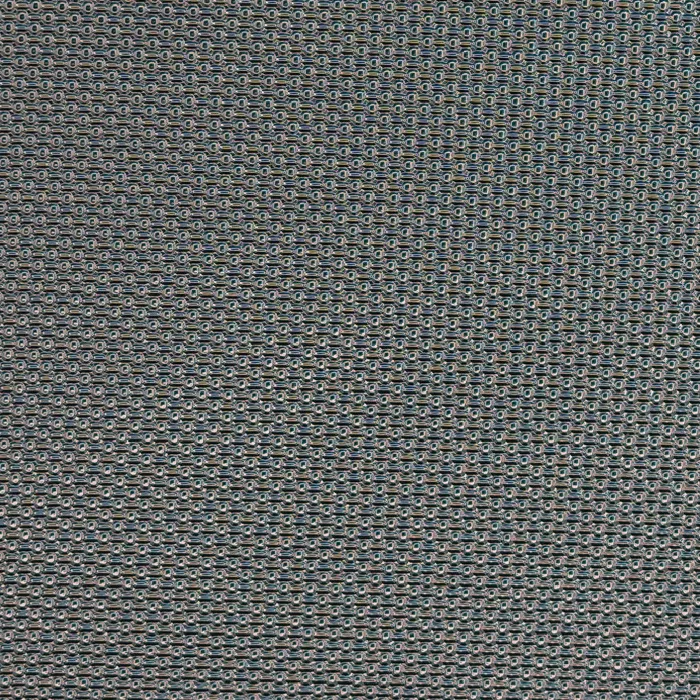

Matte Reflective Laminate, Dark Grey
Matte dark grey face. Aluminium foil laminate, sold by the roll and slit to width.
Material family
Aluminum Foil Laminate Manufacturer
Solid aluminum foil combined with a specified carrier. Supplied by the roll.
Also called foil-scrim-kraft (FSK), foil-PE laminate, foil-PET, aluminum foil facing, sarking foil.
About this video
Aluminum foil laminates combine a solid foil layer with a specified carrier such as PE, PET, woven material or kraft, and are supplied by the roll. This short film shows the illustrative layer order, what each carrier brings, three typical constructions from our data sheet (TDS 5.9), how face orientation and perforation are handled, and what to give us when you specify a roll.
Constructions in this family.

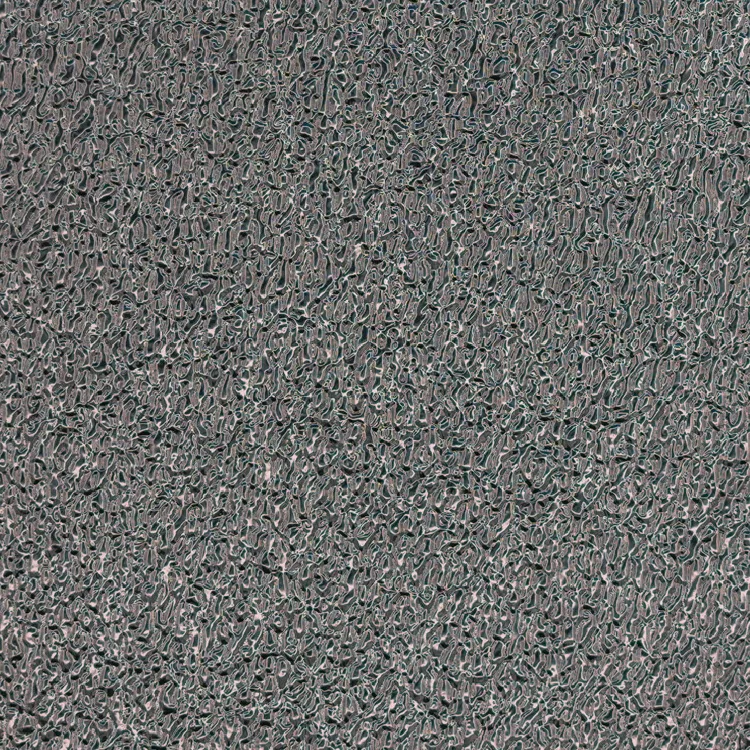

Photographed as they are. Open any one to compare faces, pattern and roll form.

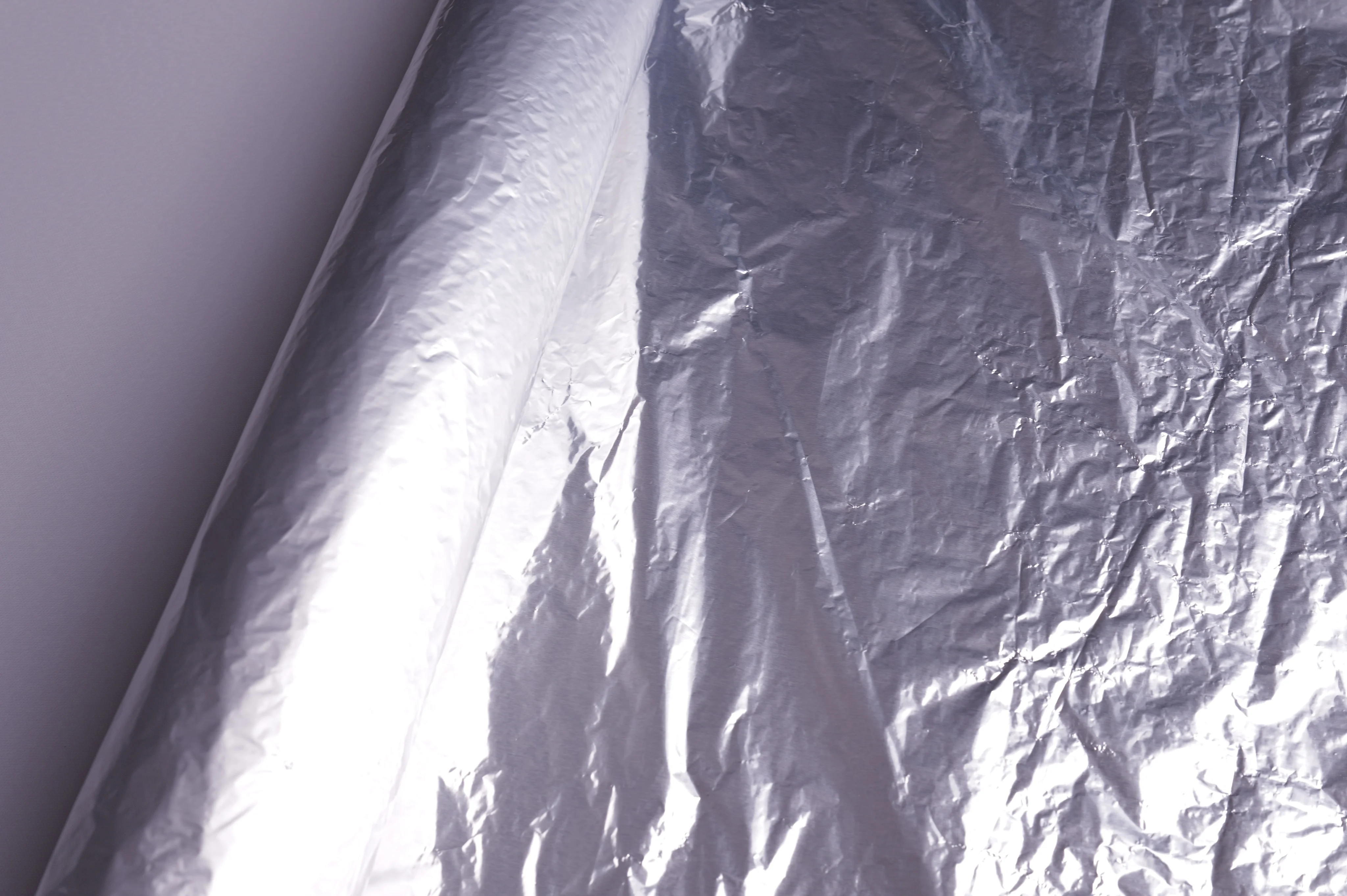

Aluminum Foil, Plain
Plain aluminium foil face. Aluminium foil laminate, sold by the roll and slit to width.
Request a quote for Aluminum Foil Laminates
Tell us quantity, width and roll length, application and destination. We reply within 24 hours on working days.
Construction.
Layer structure
- Aluminium foil
- Adhesive
- Carrier: PE, PET, scrim or kraft
About this family
Made on our lines, confirmed per quotation.
Aluminium foil laminate roll constructions combine a solid foil layer with a specified carrier such as PE, PET, woven material or kraft. Exact layers, application values, slit width and roll format are confirmed for the quotation.
An aluminium foil laminate combines a solid foil layer with one or more named carrier layers. The layer sequence and material thicknesses must be identified for the quoted construction.
Key applications.
Application
Radiant barrier foil, foil-bubble and foil-foam for roofs, walls, ducts and thermal wraps.
Application
Foil laminates and foil-foam liners for cooler bags, insulated boxes and shipping envelopes.
Application
Heat-reflective fabric laminates for makers of 3D printer, laser and machinery covers.

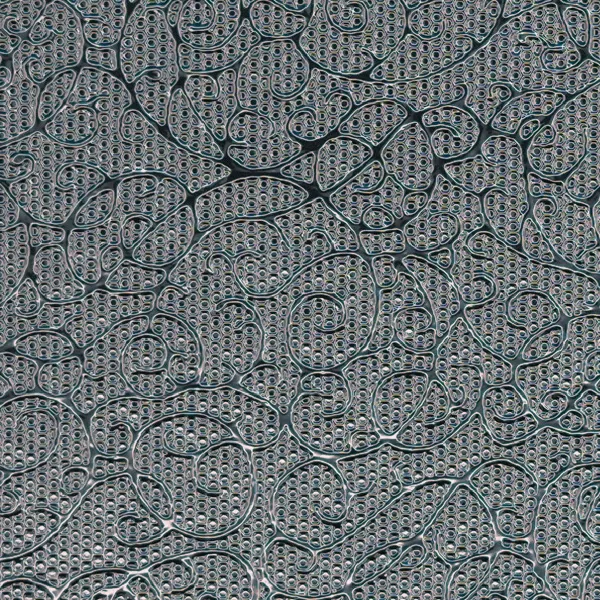

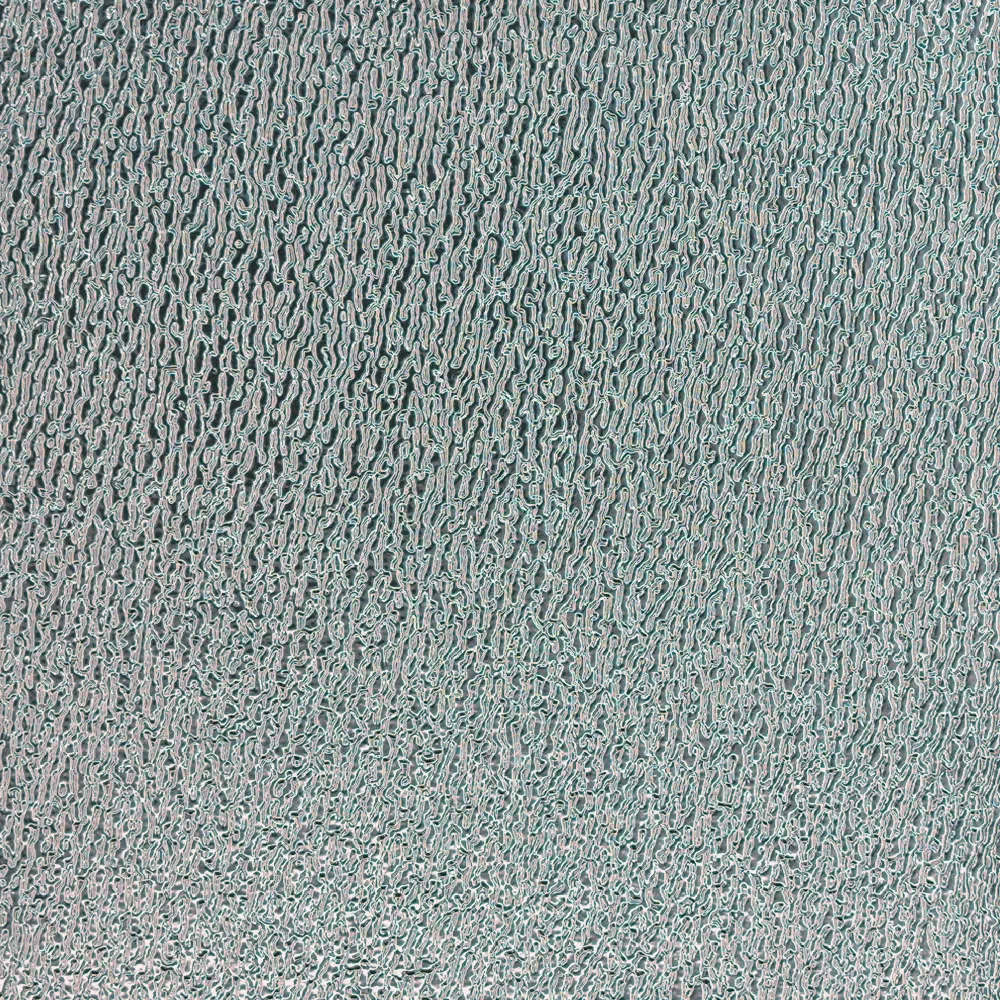

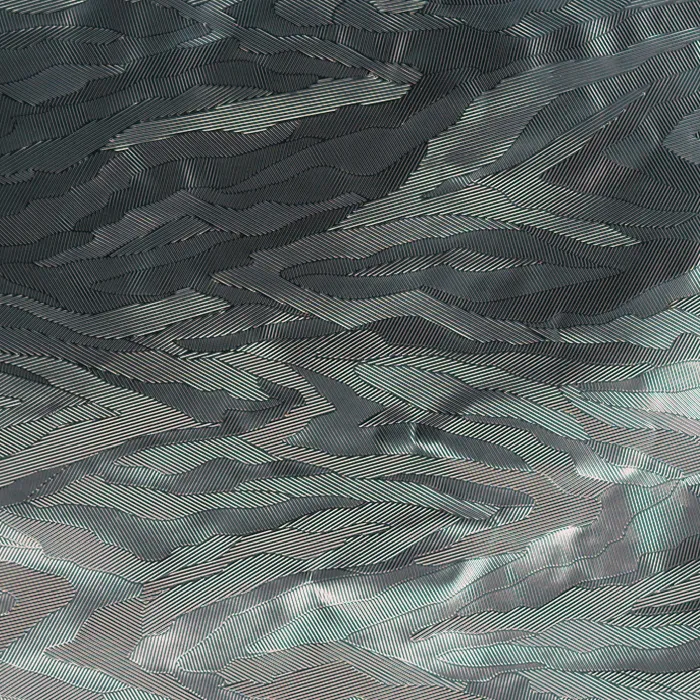

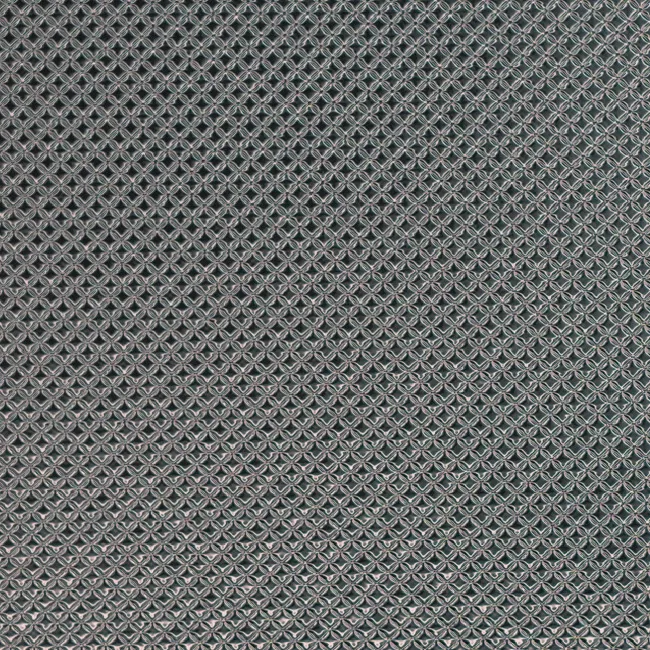

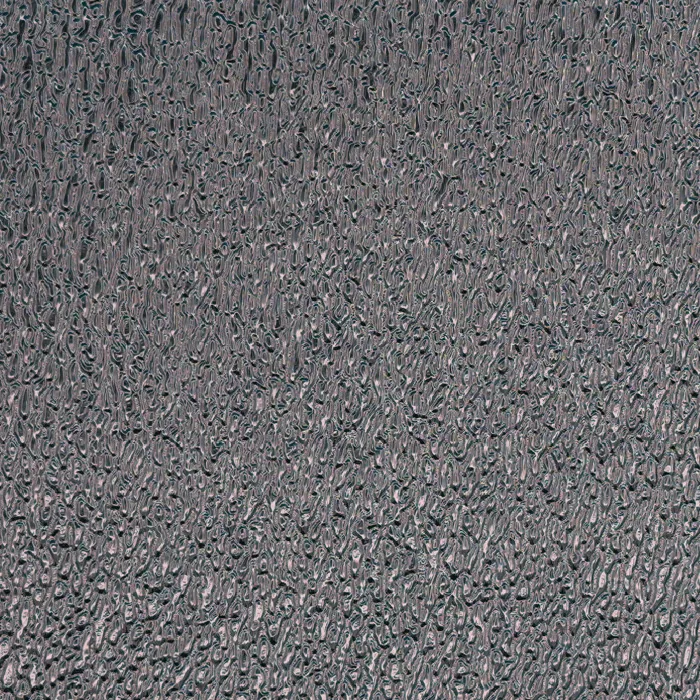

Patterns this family carries.
Standard constructions
Data sheet TDS 5.9
Constructions built on solid aluminium foil, laminated to PET and, in two of them, to a metallised PET second face. Figures are typical values from our data sheet.
| Ref | Laminate structure | Type | Typical use | Tensile strengthMPa | Elongation at break% | Reflectance% | Temp, short-term°C | Temp, long-term°C | Bond strengthN/15 mm |
|---|---|---|---|---|---|---|---|---|---|
| 01 | AL 7 µm + PET 12 µm + AL 7 µm | Double-sided foil | Food, pharmaceutical and electronics packaging | 150–180 | 8–12 | 92–95 | 150 | ≤ 80 | 1.5–2.0 |
| 02 | AL 6 µm + PET 25 µm | Single-sided foil | General food and daily-goods packaging | 120–150 | 10–15 | > 90 | 130 | ≤ 70 | 1.0–1.5 |
| 03 | AL 6 µm + PET 25 µm | Single-sided foil | Large-format food and industrial protective packaging | 120–150 | 10–15 | > 90 | 130 | ≤ 70 | 1.0–1.5 |
| 04 | AL 5.2 µm + PET 12 µm + VMPET 12 µm | Double-sided, foil + metallised PET | Premium food and cosmetics packaging | 130–160 | 9–13 | > 90 | 140 | ≤ 75 | 1.2–1.8 |
| 05 | AL 6 µm + PET 12 µm + VMPET 12 µm | Double-sided, foil + metallised PET | Mid- to high-end food and gift packaging | 130–160 | 9–13 | > 90 | 140 | ≤ 75 | 1.2–1.8 |
| 06 | AL 7 µm + PET 12 µm + AL 7 µm | Double-sided foil | High-temperature food packaging, electronics shielding | 150–180 | 8–12 | 92–95 | 150 | ≤ 80 | 1.5–2.0 |
Category-level reference values from TDS 5.9. Confirm the exact construction, test method, tolerance and current supporting document in the written quotation. Roll width and format are confirmed per order.
Why choose Leetaiheng.
Roll-supply scope
The exact construction, faces and roll format are defined in the written quotation.
Construction-specific documents
Technical values and documents are confirmed only for the applicable construction and test method.
Quotation-defined terms
Slit width, roll length, core, MOQ, sample availability and lead time are confirmed in the quotation.
Buyer requirements
State the target market, required standard, application and destination.
Commercial terms
- MOQ
- Confirmed for the selected construction and width
- Lead time
- Typically 2–3 weeks after confirmation
- Samples
- Availability and terms confirmed with the quotation
- Packing
- Confirmed for the selected roll format and destination
Confirmed in writing with every quotation.
What it is
An aluminium foil laminate combines a solid foil layer with one or more named carrier layers. The layer sequence and material thicknesses must be identified for the quoted construction.
Choosing a carrier
State the intended assembly and the required mechanical, barrier, thermal and converting conditions. Carrier choice and any relevant value are confirmed against construction-specific information.
How to specify
Give us foil thickness, carrier type and weight, roll width and length, core, end use and target market. If a standard or limit is required, name it so we can confirm whether current evidence applies to the exact quoted construction.
Frequently asked.
Which face should be exposed?
Face orientation depends on the complete assembly and its validated design. Confirm the exact construction and follow the applicable project documentation.
Do you supply perforated versions?
Perforation is not assumed within the standard roll scope. State the requirement and we will confirm whether it is available for the exact quoted construction.
